WF390水驅動排煙機（美國RAMFAN）

Water Powered Turbo Blowers

First Choice of Naval Forces Worldwide

RAMFAN Water Powered Turbo Blowers are used by Naval Forces worldwide for smoke removal,ventilation and cooling during combat operations.

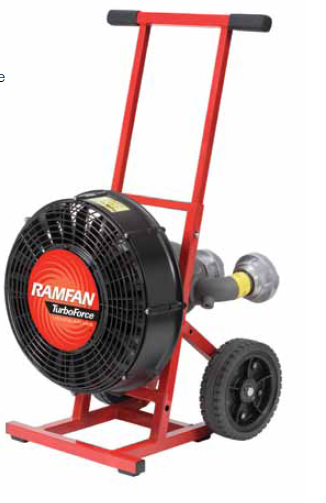

16”/40cm | WF390L High Volume PPV Blower

特點

水力驅動，本質安全

7片鋁鑄渦輪葉片，葉輪動平橫精度高

本質安全型的正壓式風機

大容量排風機，適用于大型建筑

進水控制閥門，可直接控制風機排煙量

循環水出口（閉合水管道）以持續水供應

抗腐蝕渦輪，可在鹽咸水質中使用

ONEstep 定位調節器，快速方便設置

32mm粉末涂層鋼架及適合所有地形的充氣胎

全寬度可伸縮手柄，方便直立、推拉操作

手動ON/OFF閥門開關

Water powered, intrinsically safe

7-blade polymer TurboForce? impeller for increased shatter resistanceand enhanced PPV performance.

Outlet for water recycling (closed circuit) to conserve water supply

Wide range tilt adjustment

Powder coated steel frame

Equipped with PowerStream? to support greater setback distances

reducing the noise level inside the building and allows the entry/exit

to keep clear of obstructions for advancing firefighters.

Lightweight, easy to maneuver

Optional mister attachment

Full-width retractable handle and heavy-duty wheels for upright,

push-pull operation

Optional Accessories: Many water connection fittings and ducting

configurations available.

技術參數：

馬達：10Hp@250psi

[email protected]

重      量:27kg

體      積：580/430/410 mm

壓力/流量：

額定: 150psi/96gpm 0.8MPa/362lpm

最大額定： 250psi/162gpm 1.75MPa/612lpm

渦輪：

17,417cfm@150psi

29,610m3/[email protected]
